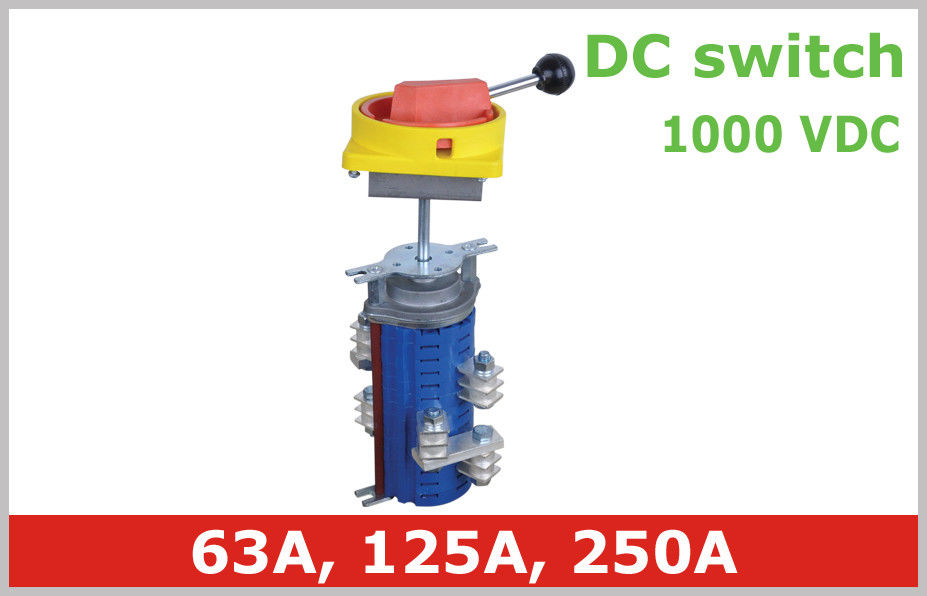

High Speed Load Break 3 Position Rotary Selector Switch 125A

High Speed Load Break 3 Position Rotary Selector Switch 125A

  • High Speed Load Break 3 Position Rotary Selector Switch 125A
High Speed Load Break 3 Position Rotary Selector Switch 125A
รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: KRIPAL
ได้รับการรับรอง: CE
Model Number: UKG2-125
การชำระเงิน:
Minimum Order Quantity: 50 pcs
ราคา: negotiable
Packaging Details: Each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C
Supply Ability: 10000 pcs per month
ติดต่อ
รายละเอียดสินค้า
Max. Voltage: 1000V DC Rated ampere: 125A
Type of conductor terminal: M8 Cable cross-section: 25-50 mm2
Polarized: No Hanld/panel: red,yellow,blue
เน้น:

Multi Position Selector Switch

,

Explosion Proof Selector Switch



High Speed Load Break 3 Position Rotary Selector Switch 125A





UKG2 series DC Load Break Switches have been specifically designed to switch Direct Current (DC) at voltages up to 1000Volts.



Their robust design and ability to switch such voltages, at rated current, mean that they are ideally suited to be used in the switching of Photovoltaic (PV) systems.





Features:



Rated current range: 250AA



Rated working voltage: 1000V DC.



Unique spring loaded switching mechanism for high speed switching(5mS max).



Knife edge self-cleaning contacts for increased switch life.





Specifications:



Type

UKG2-63

UKG2-125

UKG2-250

Rated insulation voltage

Ui

440

440

440

Impulse voltage

Uimp

6

6

6

Rated operational voltage

DC

250

250

250

AC

440

440

440

Conventional thermal current(A)

Ith

63

125

250

Ithe

63

125

250

Iu

63

125

250

Rated thermal current le (A)

AC22A 690V





63







100









175



AC23A 525V

AC22A 525V

AC23A 440V

AC22A 440V

AC22A 415V

DC23A 250V



63

100





175

DC22A 250V

DC21A 250V

Rated operational power(kW)

AC22A 690V







37.5









61









108



AC23A 525V

AC22A 525V

AC23A 440V

AC22A 440V

AC22A 415V

DC23A 250V



14

22.5





40

DC22A 250V

DC21A 250V

Rated short-time current

Icw 1 sec. (A)

1500

4000

5000

Icm peak (Ka)

2.2

5.88

7.65





FAQ:



A. How's the delivery time?
    Depend on your quantity, usually within 20days after receiving deposit



B. Would you accept OEM/ODM service?

     Glad to say that there is planning department, technical department and mould tooling center in

     our factory. For the OEM & ODM, it is ok for us if your brand, market shares are great.



C. Would you offer free sample?

     Samples are freely provided and shipping costs is paid on your end usually.



D What's your guaranty time?

    At least 2 years and depend the product



E What's your payment term?

    T/T, L/C; other terms is negotiable after further check
